Overview

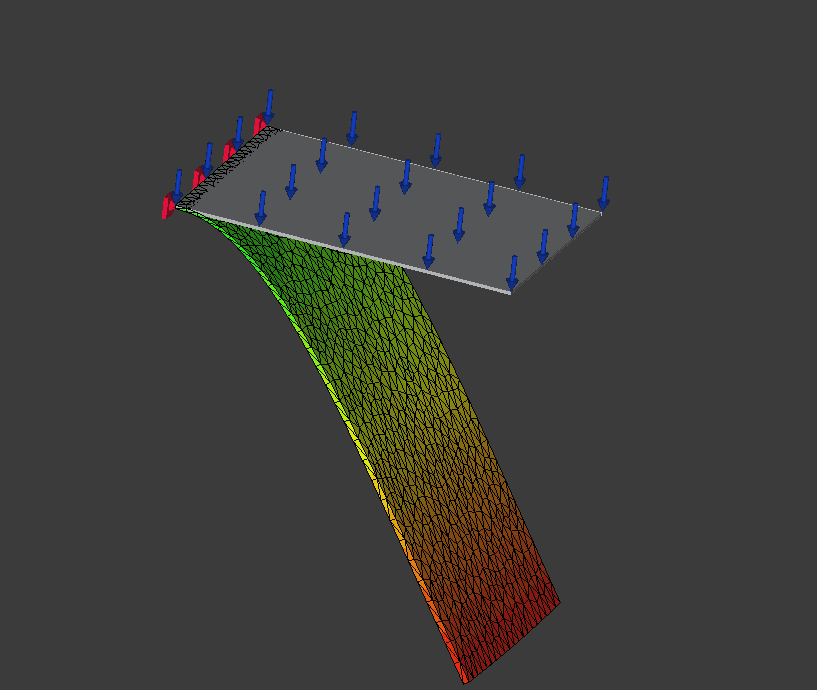

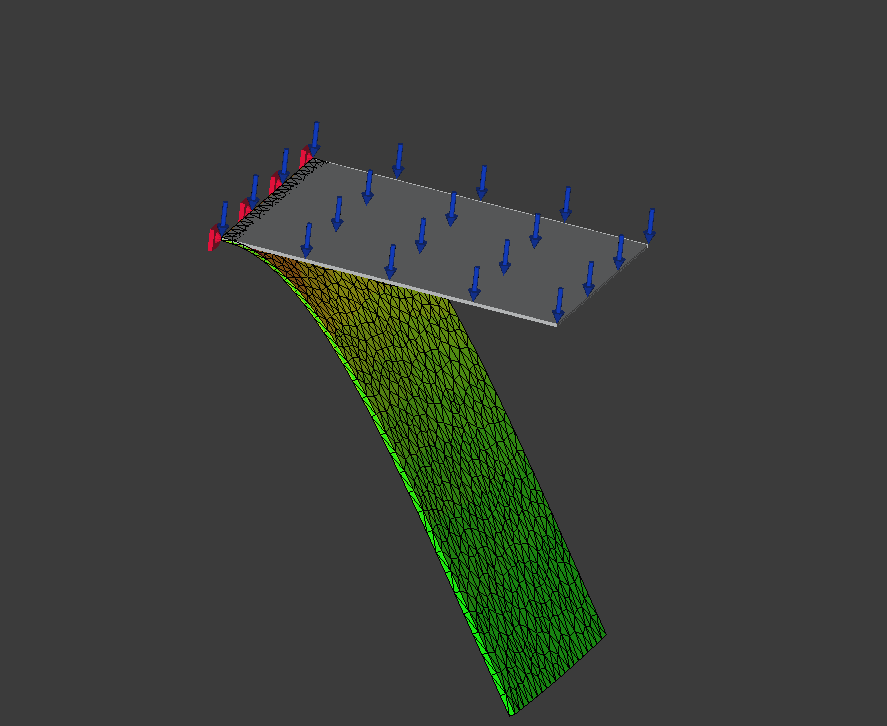

Three CFRP layup configurations analyzed using Classical Lamination Theory and FEA for aerospace structures.
Material: Hexcel IM7/8552
eLamX Field | Value |
|---|---|
E∥ | 171,000 MPa |
E⟂ | 9,080 MPa |
G∥⟂ | 5,290 MPa |
v∥⟂ | 0.32 |
Ply thickness | 0.131 mm |

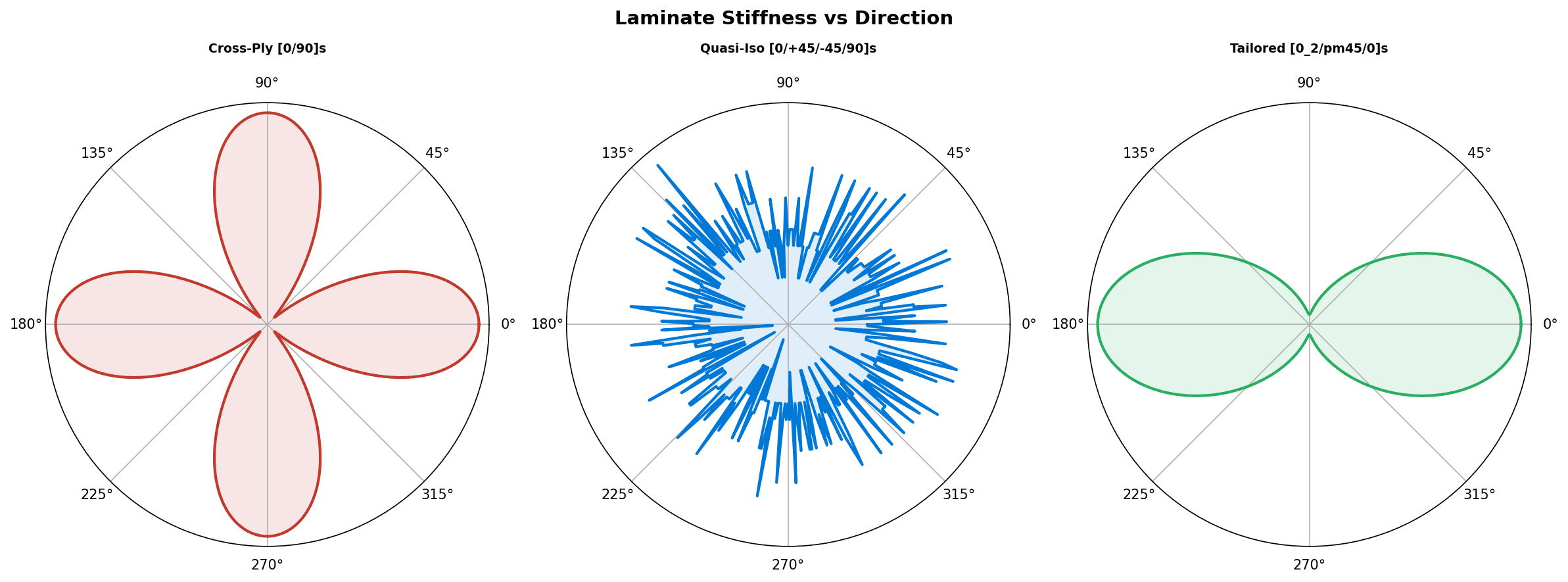

Layups
Layup | Sequence | Application |
|---|---|---|
Cross-Ply | [0/90]s | Floor panels |
Quasi-Isotropic | [0/+45/-45/90]s | A350 fuselage |
Tailored | [0₂/±45/0]s | VTP skins |
